1. 机身材质为SUS304不锈钢,外形防护等级(IP53),符合GMP标准。

The material of the fuselage is SUS304 stainless steel, the appearance protection grade (IP53), conform to the GMP standard.

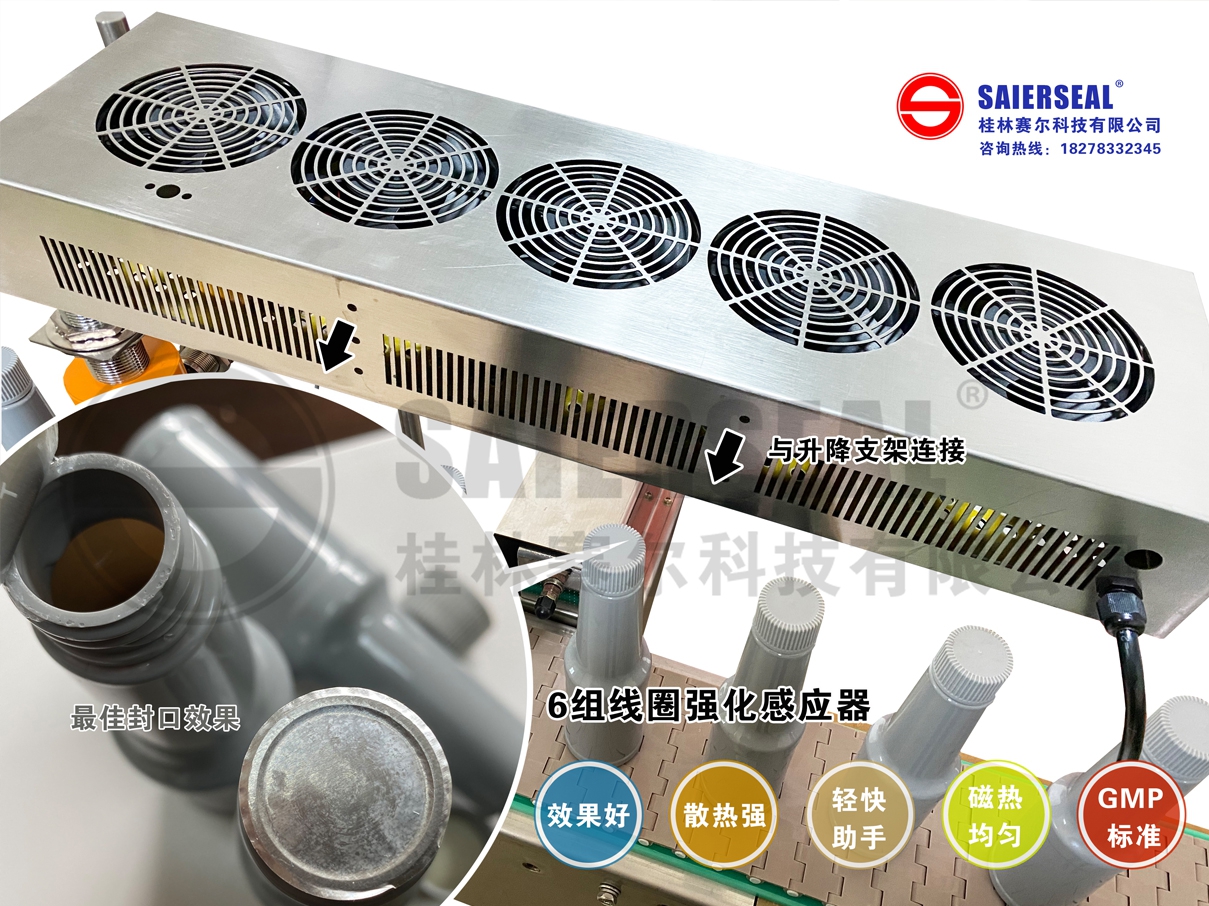

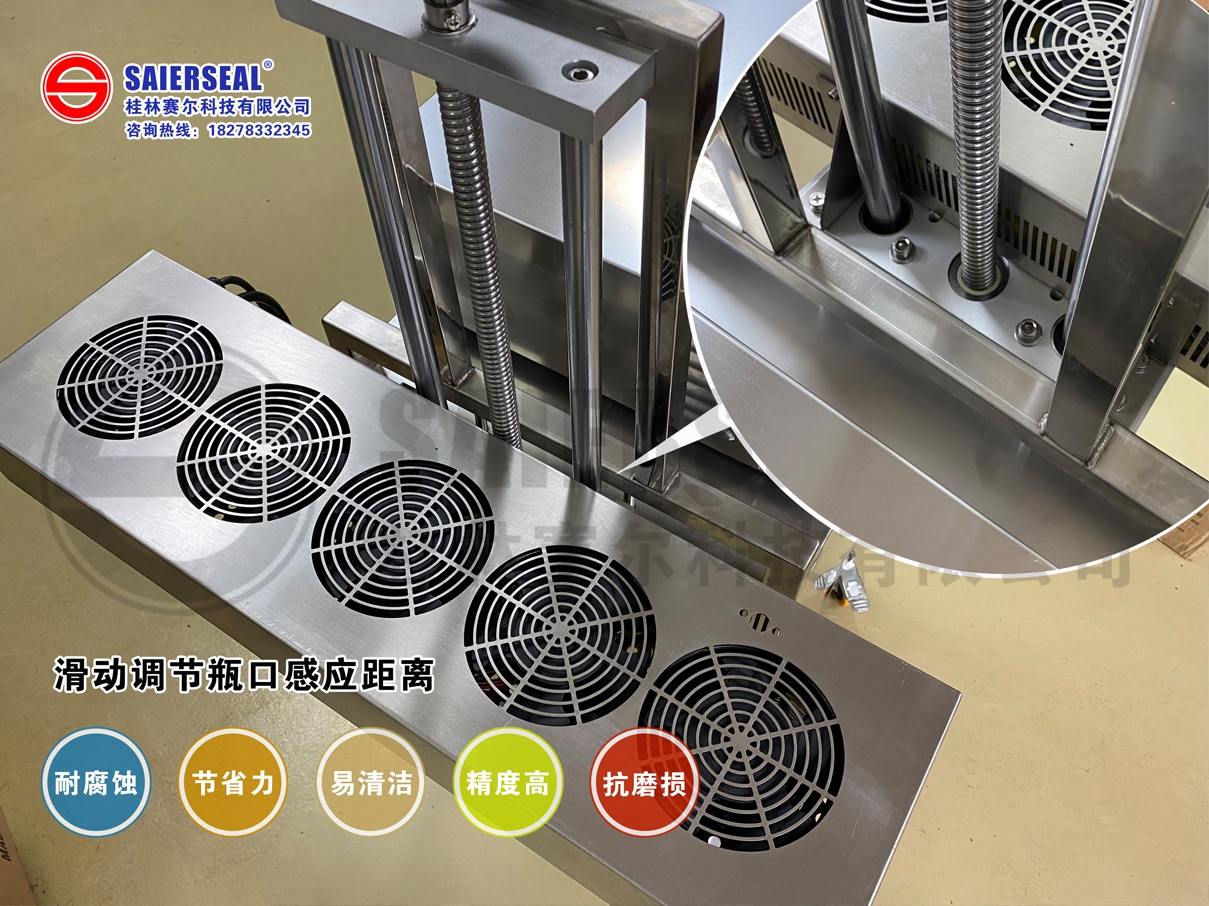

2. 感应器升降装置加入滚珠滑动轴承设计,调节瓶体封口高度轻松不费力。

It is easy to adjust the seal of the bottle body with the design of the ball sliding bearing with the inductor lifting device.

3. 运用EMC抗磁干扰结构设计,解决电磁波对相邻设备工作频率干扰问题。

The use of EMC electromagnetic interference structure design, solve the electromagnetic wave to the adjacent frequency interference device.

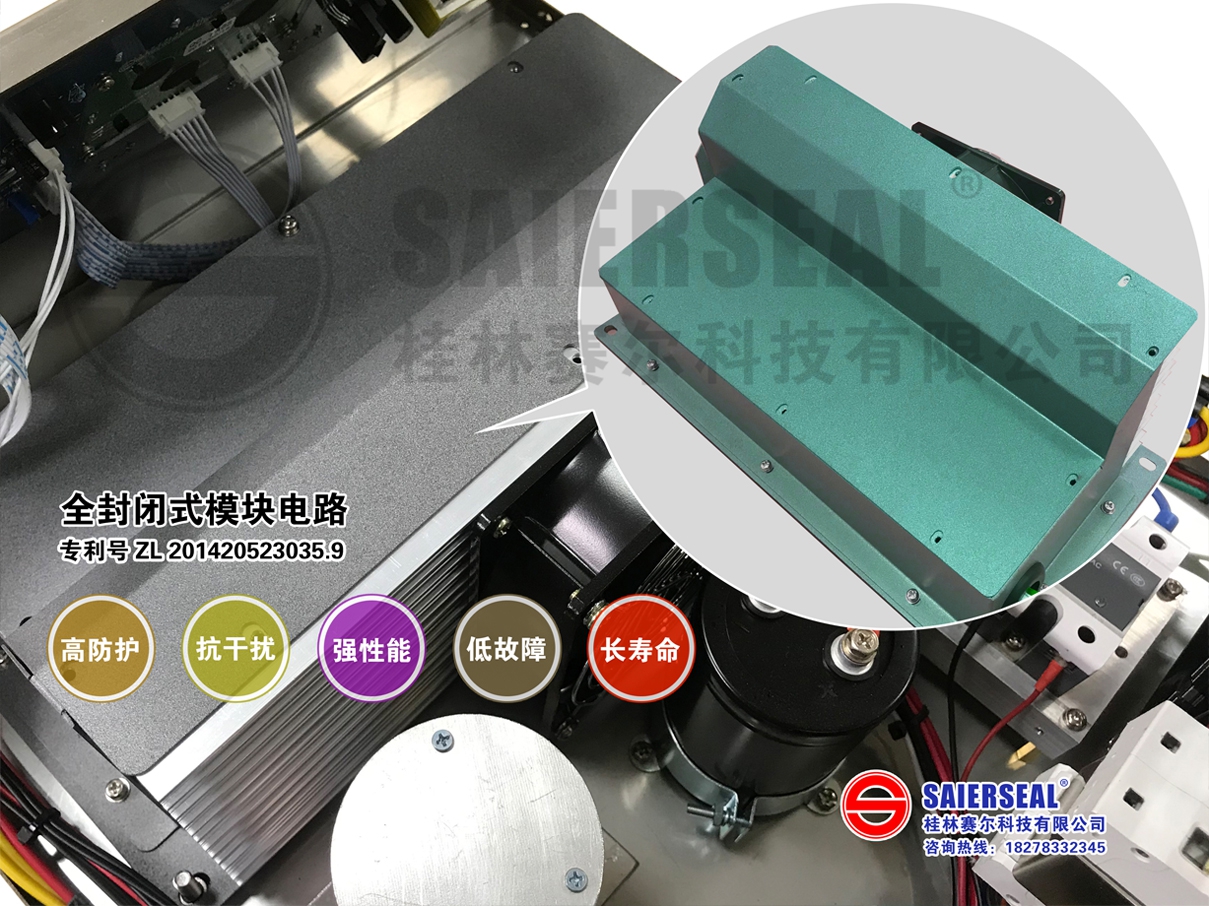

4. 全封闭式模块电路,防护性能可靠,故障低,大幅延长设备使用寿命。

Full closed module circuit, reliable protection performance, low failure, greatly prolong the service life of the equipment.

5. 功率输出大小可调,准确控制不同瓶口直径需要的磁热强度。
赛尔专利感应器ZL 201520800479.7封口范围广,可调式功率让封口更节能。

The power output is adjustable, and the magnetic and thermal strength required for the diameter of the bottle mouth is accurately controlled.

6. 内置稳压电源,电网波动时功率恒定补偿。

Built-in steady voltage power supply, power constant compensation when power grid fluctuates.

7. 阻瓶自动停止封口,避免滞留在感应器磁热范围内的易燃物料受热起火。(选配功能)
The bottle stop automatically stops the seal to avoid the inflammable material trapped in the magnetic and thermal range of the sensor to be heated and fired.

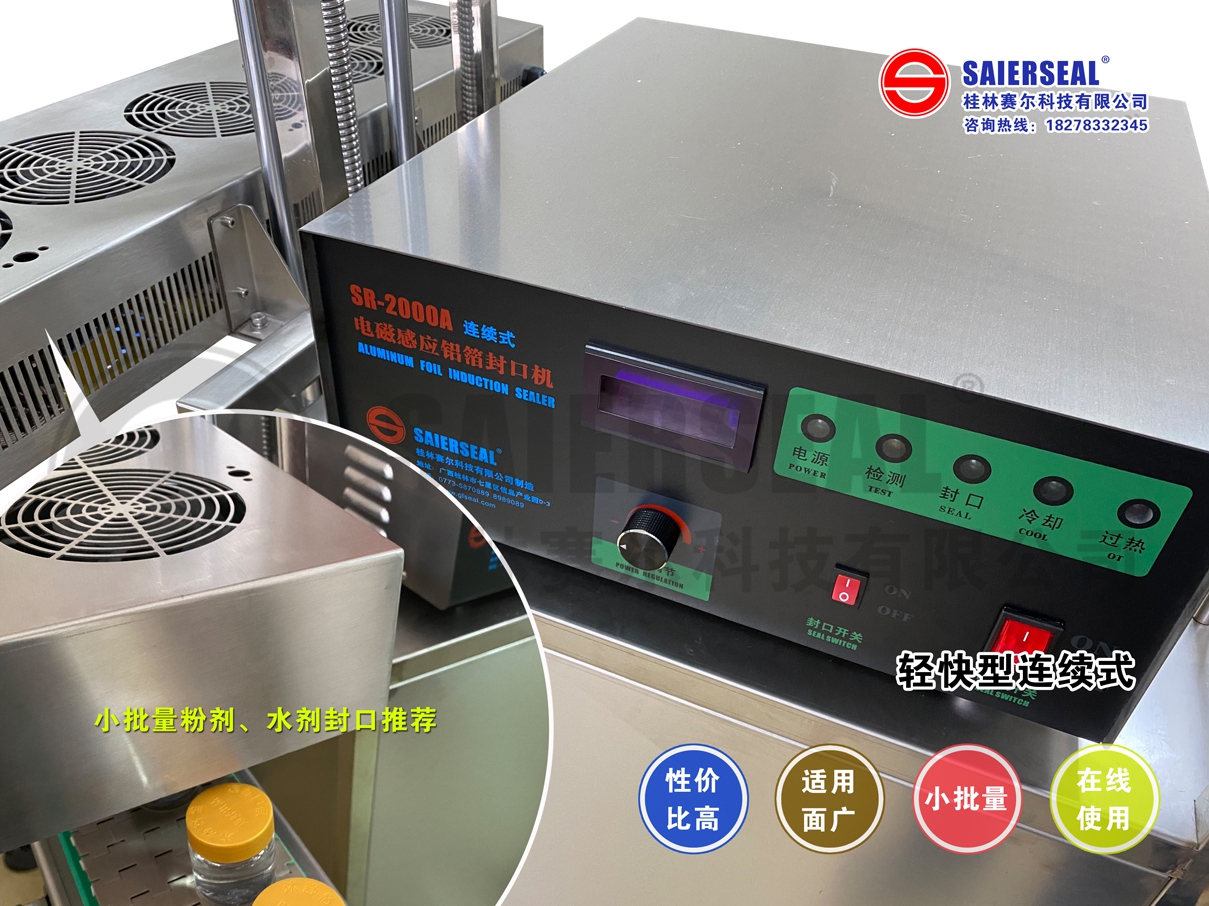

SR-2000A is a wind cooling and high-power electromagnetic induction aluminum foil sealing machine, which is specially used for bottle packaging and sealing of condiments, pharmaceuticals, chemical preparations and other products. It is satisfied with the continuous sealing requirements of the modern high speed production line. It has advanced function and simple operation. It can adjust power for the characteristics of different filling materials to achieve a strong and beautiful product sealing purpose.

工作电压/频率 220V  50/60Hz
Electricity power

输出功率 2000Wmax
Max power

封口直径范围 ≤20毫米(特制)  20-80毫米(常规)  50-120毫米(常规)  ≥120毫米(特制)
Bottle neck diameter

适合瓶体高度 0-390毫米
Bottle height

封口速度 0-200瓶/分钟(以最快封口有效线速度除以实际瓶体直径为准)
Sealing speed
