铝箔封口机

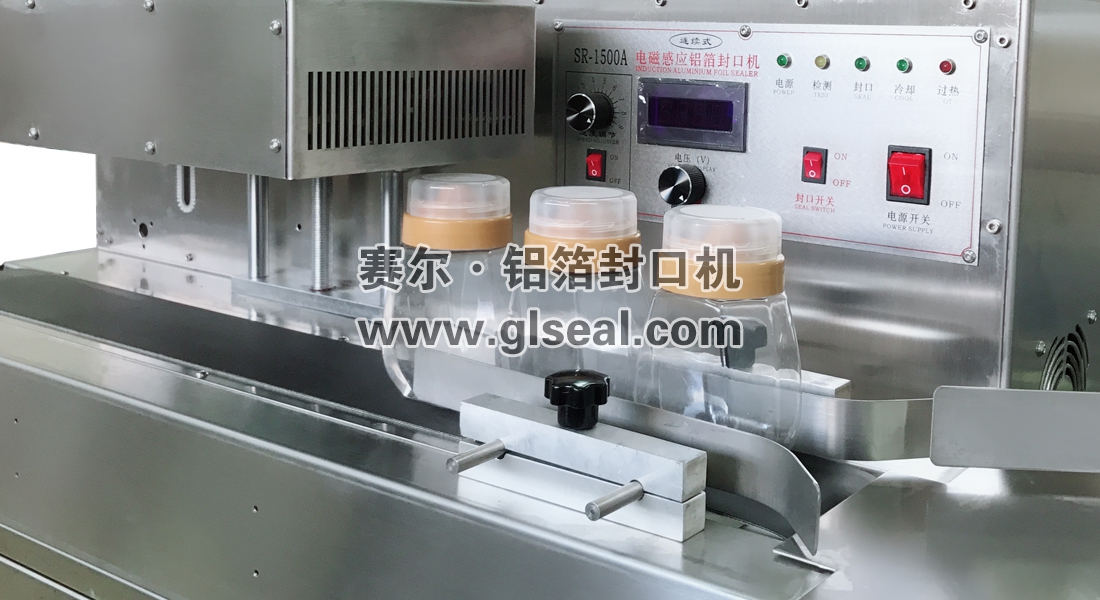

风冷电磁感应铝箔封口机SR-1500A
1. 机身材质为SUS304不锈钢,外形防护等级(IP53),符合GMP标准。
采用激光切割,边角打磨光滑,焊点处理精致,结构设计科学美观,材质耐锈蚀度高,适应生产环境能力极强。

The material of the fuselage is SUS304 stainless steel, the appearance protection grade (IP53), conform to the GMP standard.

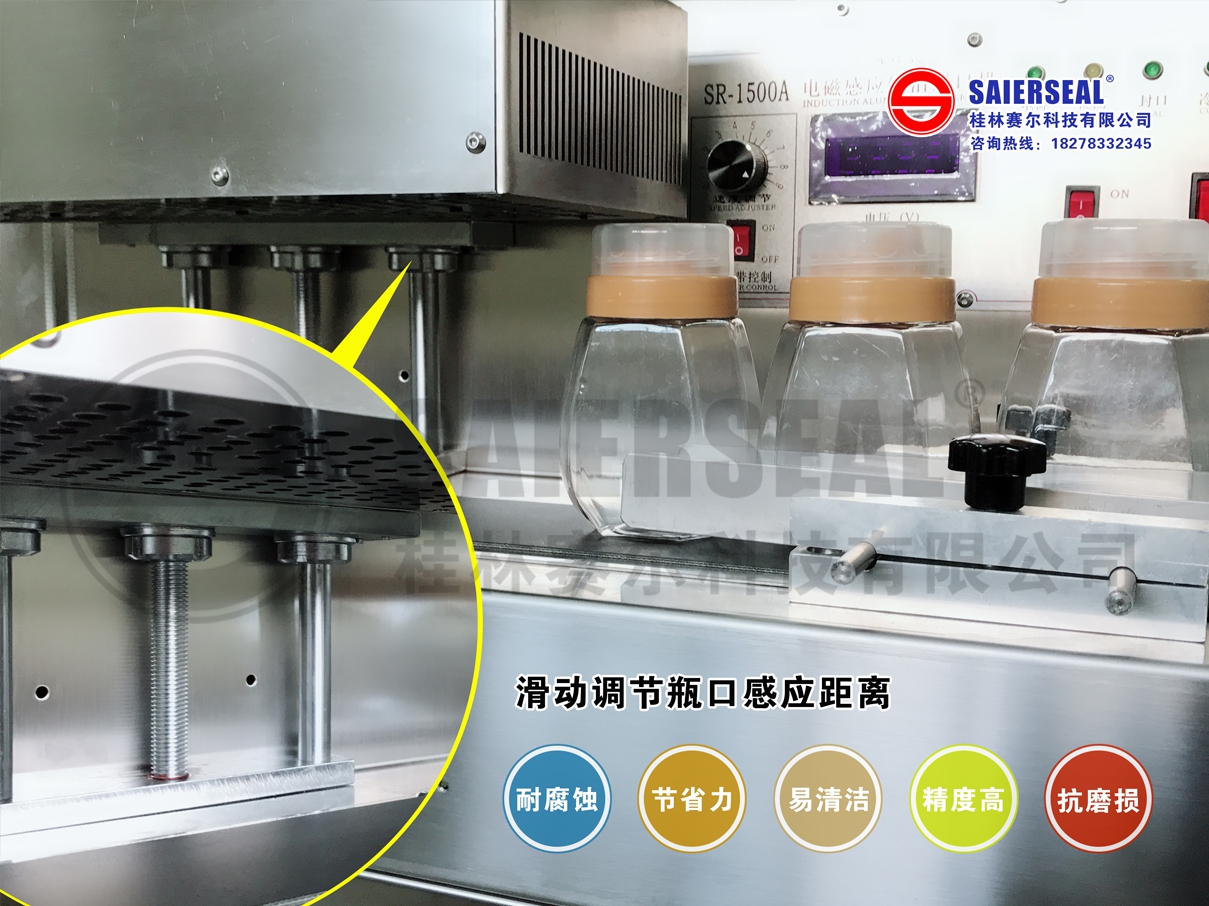

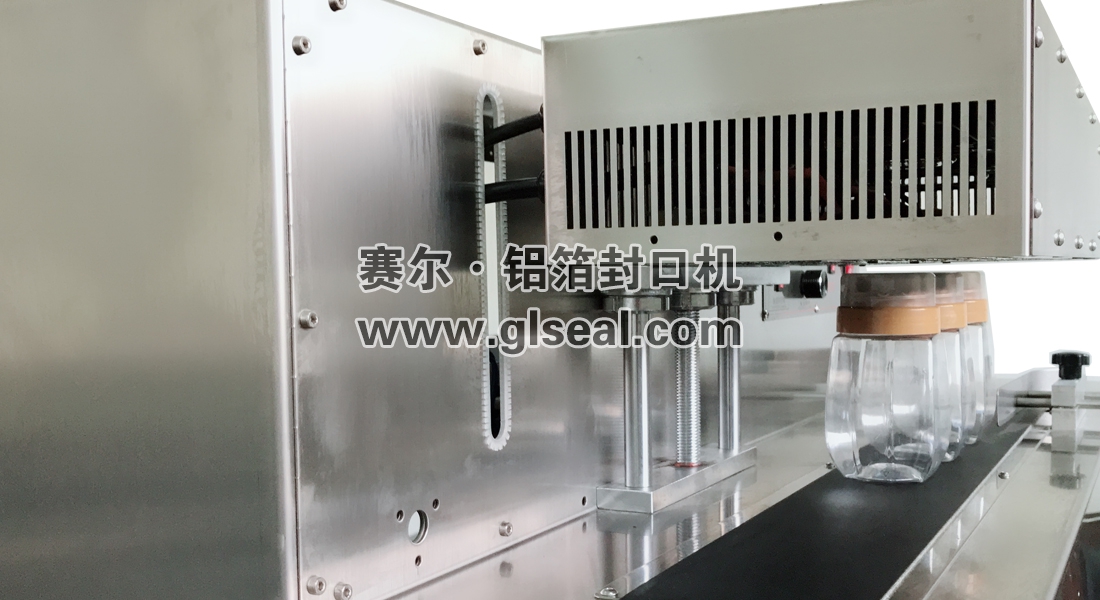

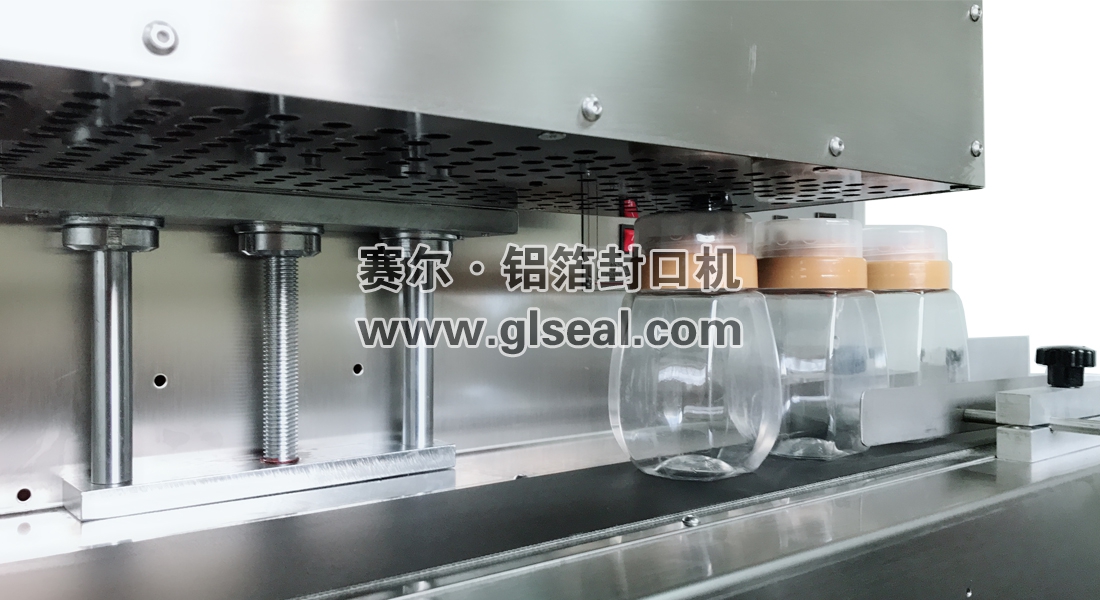

2. 感应器升降装置加入滚珠滑动轴承设计,调节瓶体封口高度轻松不费力。
304不锈钢滑杆配合滚珠轴承,转动摇把时让用户感受到一种极柔顺的运动节奏。

It is easy to adjust the seal of the bottle body with the design of the ball sliding bearing with the inductor lifting device.


3. 运用EMC抗磁干扰结构设计,解决电磁波对相邻设备工作频率干扰问题。
先进封口机必须达到的产品技术标准。

The use of EMC electromagnetic interference structure design, solve the electromagnetic wave to the adjacent frequency interference device.

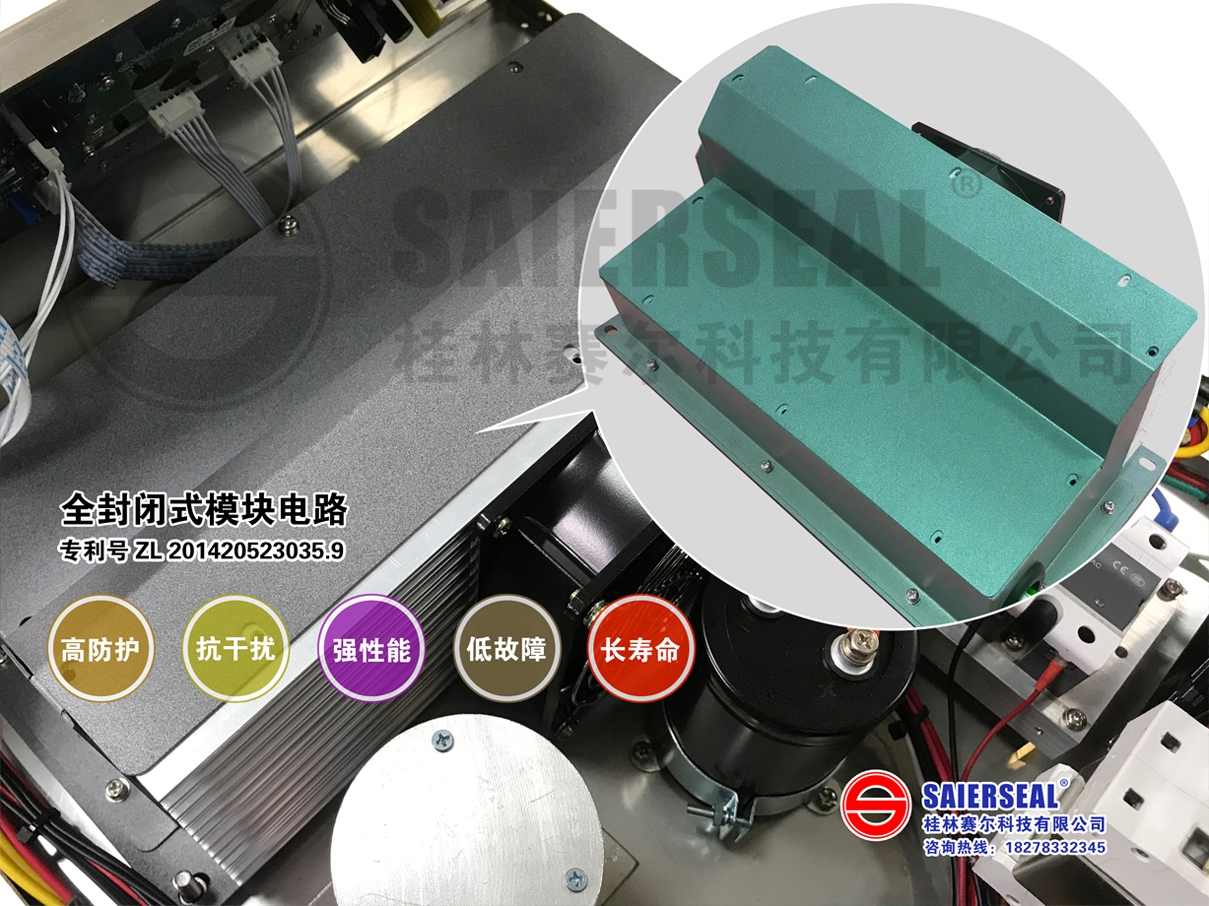

4. 全封闭式模块电路,防护性能可靠,故障低,大幅延长设备使用寿命。
选用精工电子元件组成的电路系统发热量低、属性稳定,有效减少故障隐患。主电路板与风道隔离,起到防尘、防潮、防腐蚀保护。模块电路设计让后期维护更简易便捷。

Full closed module circuit, reliable protection performance, low failure, greatly prolong the service life of the equipment.


5. 功率输出大小可调,准确控制不同瓶口直径需要的磁热强度。
赛尔专利感应器ZL 201520800479.7封口范围广,可调式功率让封口更节能。

The power output is adjustable, and the magnetic and thermal strength required for the diameter of the bottle mouth is accurately controlled.


6. 内置稳压电源,电网波动时功率恒定补偿。
自动化车间电力负荷量大,容易造成设备的运行参数变化,稳压电源设计帮助降低参数变化幅度,减小封口产生的废品几率。

Built-in steady voltage power supply, power constant compensation when power grid fluctuates.


7. 阻瓶自动停止封口,避免滞留在感应器磁热范围内的易燃物料受热起火。(选配功能)
针对易燃易爆危险品封口所设计,瓶子在感应器磁热范围静止2秒(时间可设置)立即停机报警,符合安全化生产标准。
The bottle stop automatically stops the seal to avoid the inflammable material trapped in the magnetic and thermal range of the sensor to be heated and fired.

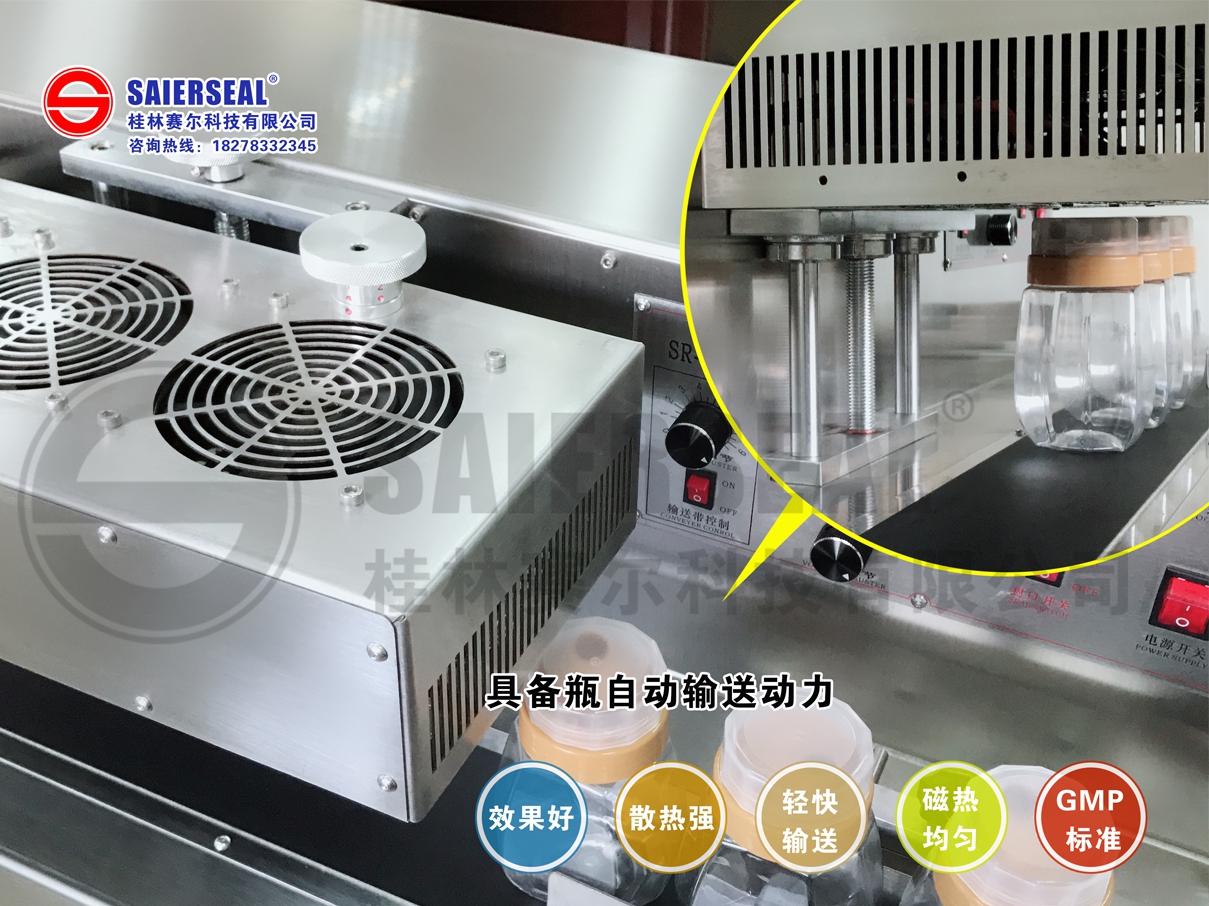

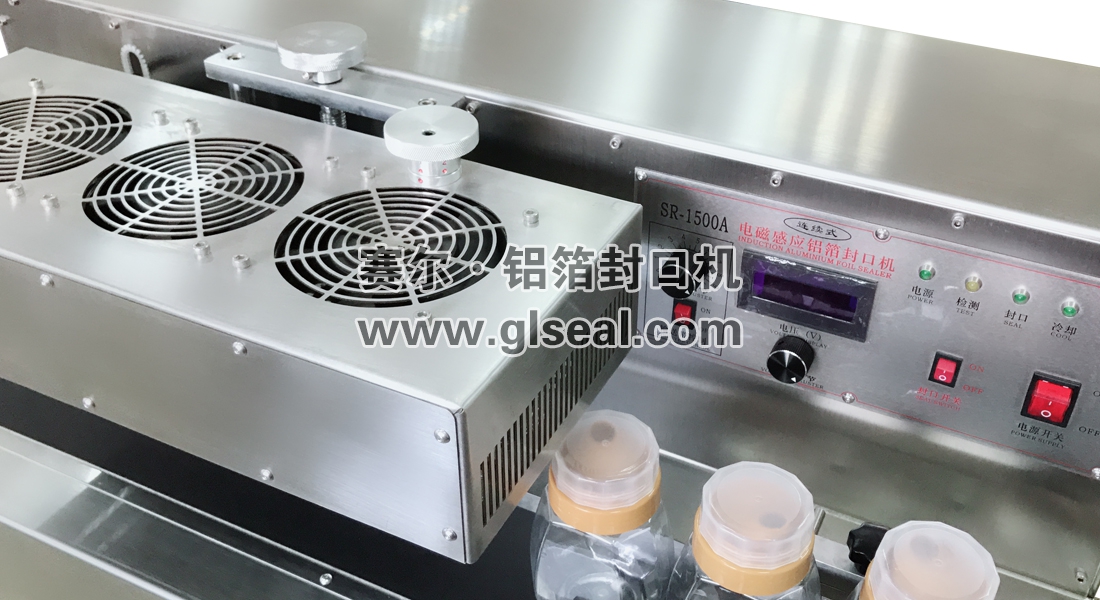

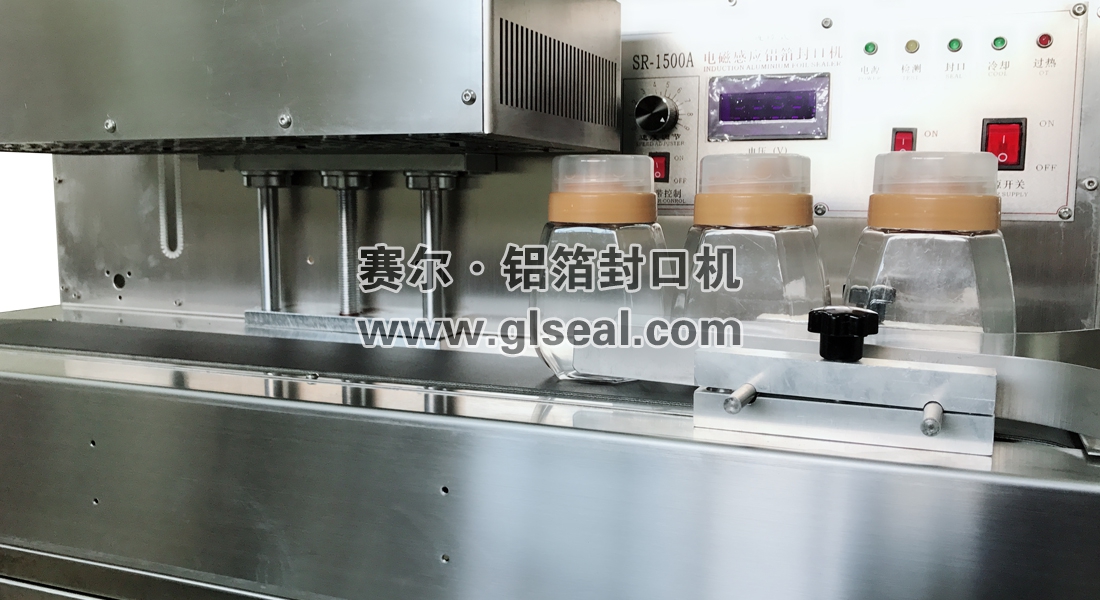

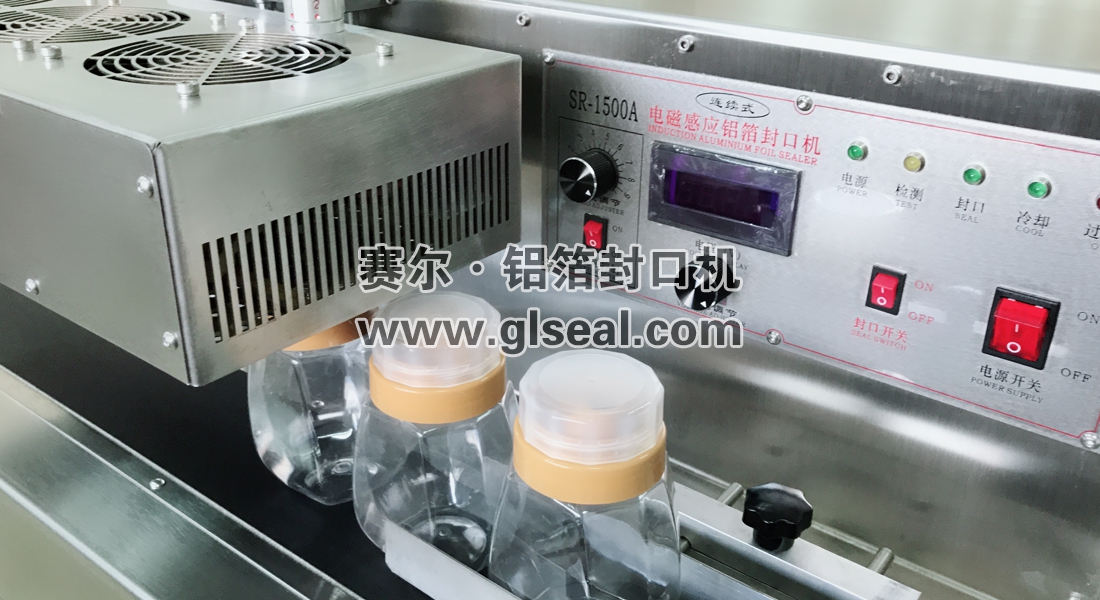

SR-1500A是一款风冷式大功率电磁感应铝箔封口机,专用于调味品、药品、化工制剂等产品的瓶包装封口。它满足于现代化高速生产线的连续封口要求,功能先进,操作简单,可针对不同灌装物料的性状特点进行功率调节,达到牢固且美观的产品密封目的。
SR-1500A is a wind cooling and high-power electromagnetic induction aluminum foil sealing machine, which is specially used for bottle packaging and sealing of condiments, pharmaceuticals, chemical preparations and other products. It is satisfied with the continuous sealing requirements of the modern high speed production line. It has advanced function and simple operation. It can adjust power for the characteristics of different filling materials to achieve a strong and beautiful product sealing purpose.

工作电压/频率 220V  50/60Hz
Electricity power

输出功率 2000Wmax
Max power

封口直径范围 ≤20毫米(特制)  20-80毫米(常规)  50-120毫米(常规)  ≥120毫米(特制)
Bottle neck diameter

适合瓶体高度 0-230毫米
Bottle height

封口速度 0-200瓶/分钟(以最快封口有效线速度除以实际瓶体直径为准)
Sealing speed
